80 Channel Rice Color Sorter With 5400 Pixel CCD

Hefei Dream Plus Co.,Ltd
Contact Now

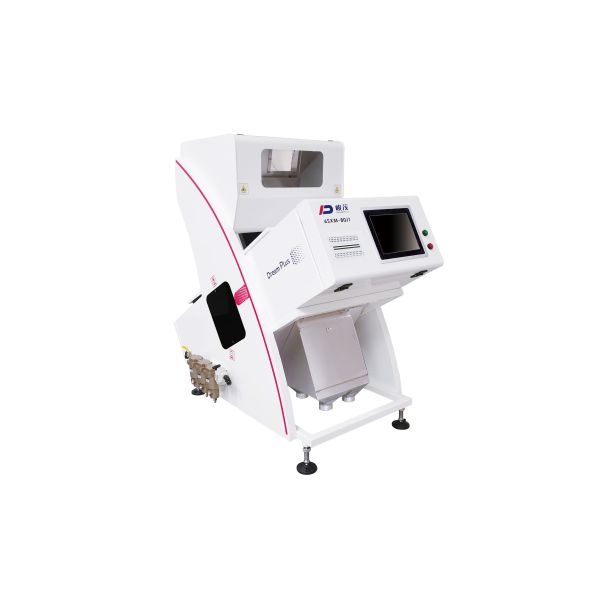

80 Channel Rice Color Sorter With 5400 Pixel CCD

Brand Name : DREAM PLUS

Model Number : 6SXM-80J1

Certification : CE、SGS、ISO9001

Place of Origin : Anhui, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 200 Set/Sets per Month

Delivery Time : 7-15 business days

Packaging Details : WOOD

Channel : 80

Capacity : 1.0~2.0T/h

Weight(Kg) : 500(±5%)

Voltage(v) : AC220V/50Hz

Power(Kw) : ≤1.8

Accuracy : 99.9%

Contact Now

80 Channel Rice Color Sorter
Name: J1 Voltage(v): AC220V/50Hz
Channel: 80 Power(Kw): ≤1.8
Capacity: 1.0~2.0T/h Weight(Kg): 500(±5%)
Optimized carryover: ≥30:1 Dimension(L*W*H mm): 1045*1630*1550
Core Tech: Camera/5th Intel FPGA/Smart cloud service Warranty: 1 year
Accuracy: 99.9%

Processing

Dream Plus Rice Color Sorter is a process of sorting rice. Putting the rice into the Hopper at first. Secondly, accessing to the Vibratory feeder and UV chutes. Then, sorting rice by Light source and Sensor. Therefor, accepted products will be into one entrance, or defective slot will be lauched by Signal processor and Ejectors (according to Air compressed).

Example

Rice Color Sorter can sort many different types of rice, such as Indica rince, Sticky rice, Brown rice, Parboiled rice, Organic rice, Yellow millet, Japonica rice, Black rice, red rice, Coix seeds, Sorghum, Corn Grit and so on. We have the Innovation Tech which is Intelligent sorting, Intelligent Cloud services(optional), Intelligent Cloud monitor(optional) and Multi-function. Also, we have the core tech that s Micron camera, 5G strcutre, Intelligent magnetice control high frequency solenoid valve, Intelligent operationg system, full core upgrade, Intelligent dimming, Human-computer interaction and High speed feeding system.

80 Channel Rice Color Sorter With 5400 Pixel CCD


80 Channel Rice Color Sorter With 5400 Pixel CCD Raw material
80 Channel Rice Color Sorter With 5400 Pixel CCDReject 80 Channel Rice Color Sorter With 5400 Pixel CCDAccepted

Power system

1. High-precision 5400 pixel high-speed line scan CCD, high-fidelity identifyinh and high speed sorting.
2. Multifunctional and intelligent software operation platform; flexible sorting modes setting available for different raw material at user's disposal; automatic memory function for the set mode;simple and easy to operate.
3. High-brightness and long-service-life LED light, durable and stable; better color sorting effect.
4. Processing system based on the frontier CCD technology.
5. Accurately identify the discolor area within 0.0025 mm2; set the inspection area according to different requirements of different material sorting precisions.

Customer service

1. A full range of customer consulting services before ordering and good after-sales service.

2. 7*24 hour on-line and door-to-door service.

3. 7-15 business day perparring and arrive on time.

4. Full miantenance and transparency.

5. Strict acceptance and the implementation of tracking service.

80 Channel Rice Color Sorter With 5400 Pixel CCD
